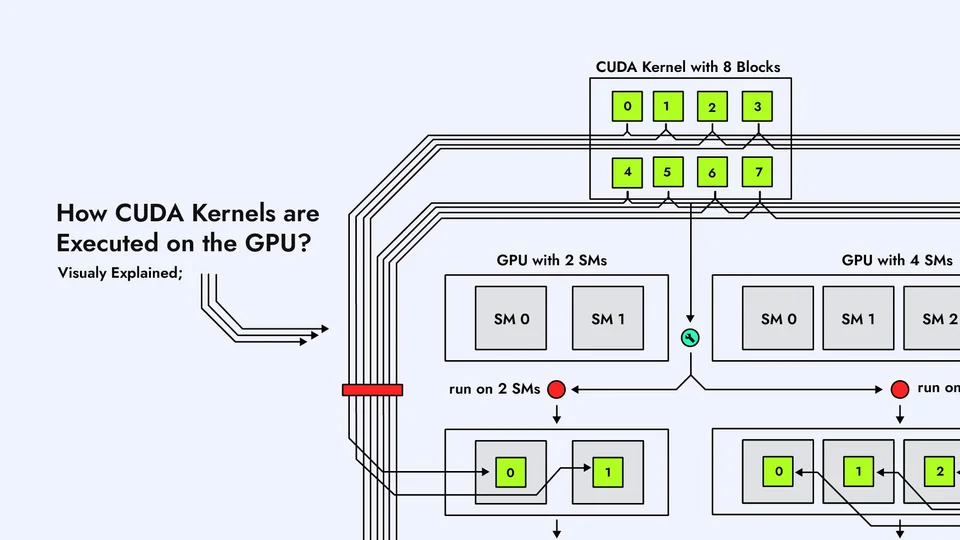

How CUDA Kernels are Executed on the GPU?

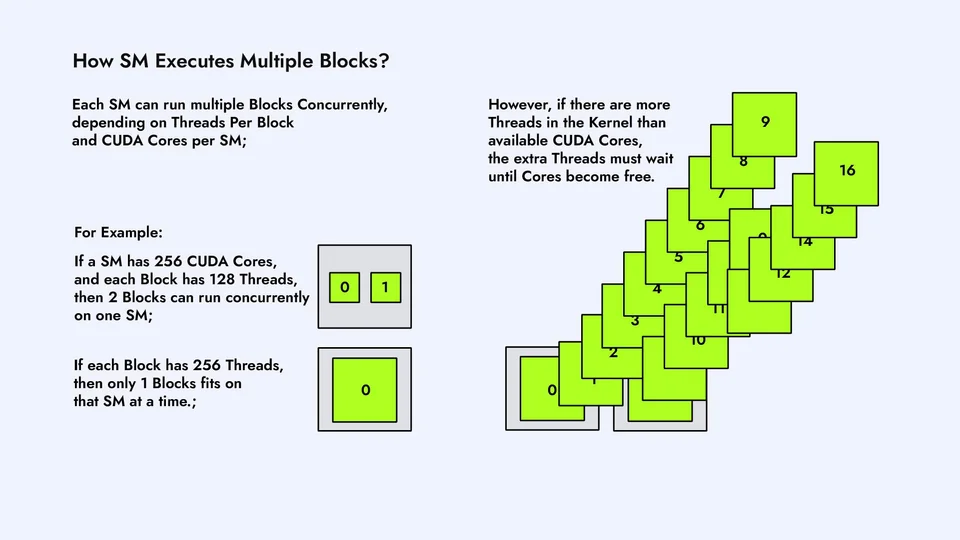

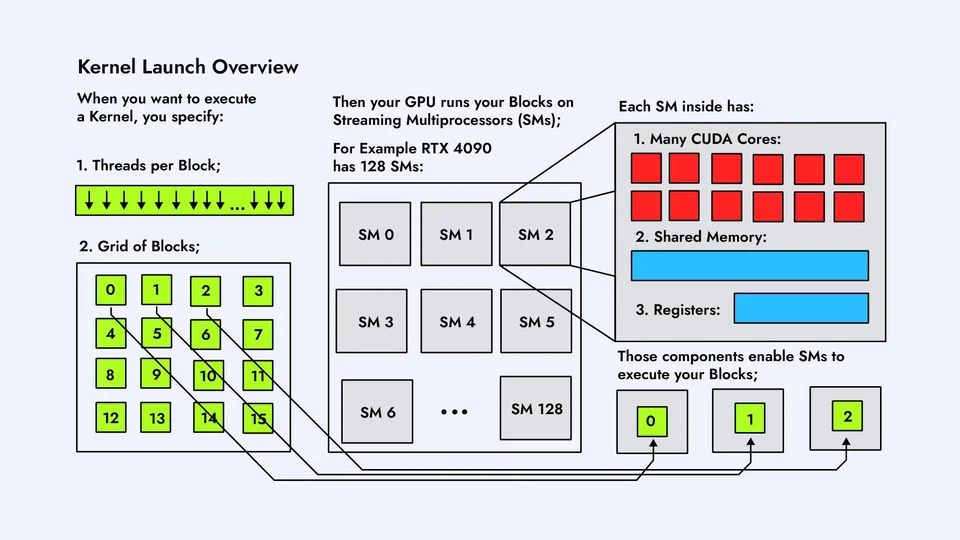

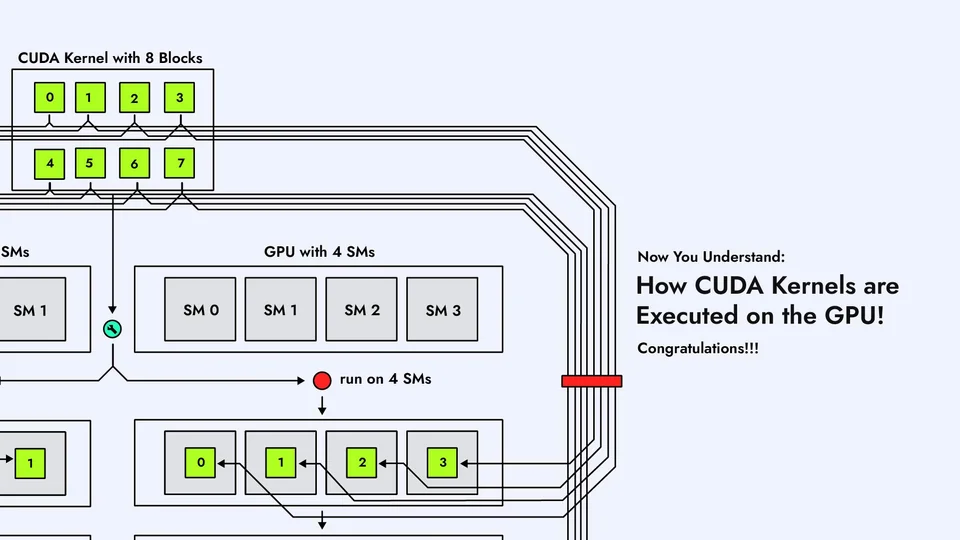

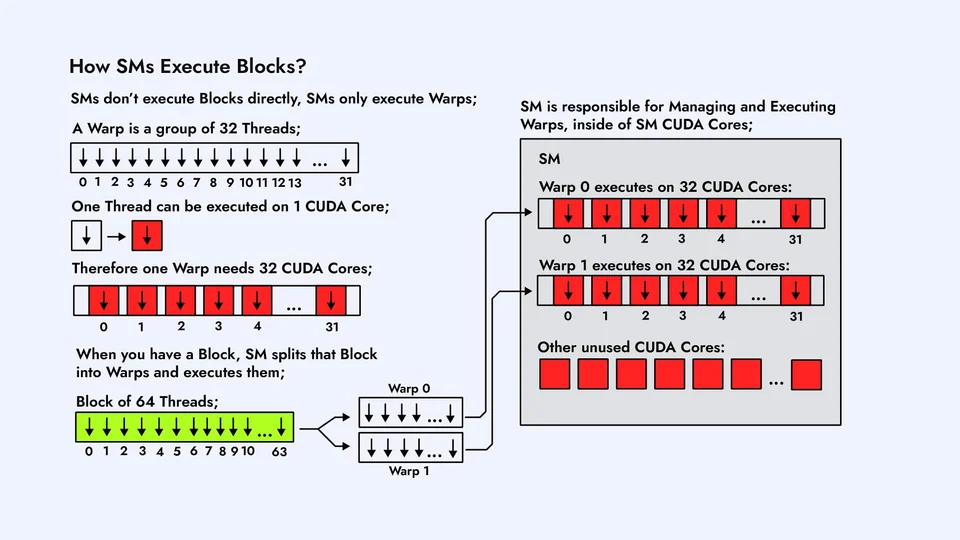

This is just an archive of this reddit post. User u/damjan_cvetkovic made a great diagrams that I don't want to loose. I do not take ownership of those images and all rights are reserved to the original author.
